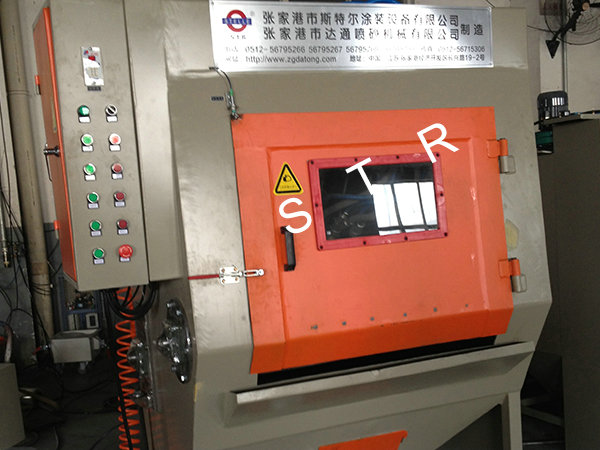

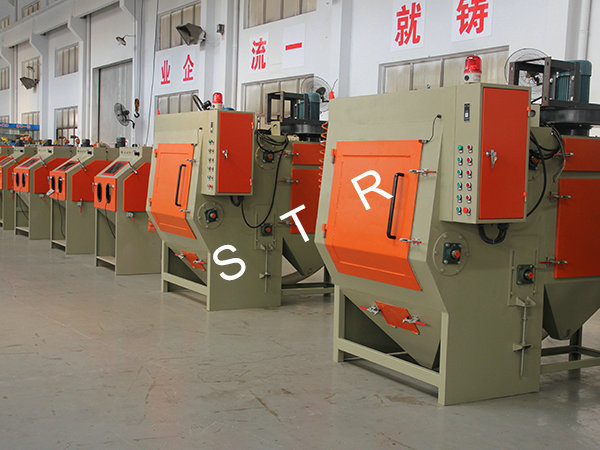

STR-履帶式自動噴砂機(請接著瀏覽網頁有很大量情況照片視頻供分類)
◆新產品結構特征 Product features
1、應具隨機自然噴砂,點動分析職能。
2、零部件裝載卸載方便簡潔,工作很簡單,大大節省人為能源。
3、滾筒設備尺寸大小及灑水噴頭數據可視投資者規定要求添加。
4、是和于這些細微工件表面的一鍵生產制造,如衣服拉鏈頭、螺栓等工藝。
1.It has regular automatic spray sand, the point start positioning function.
2.workpiece loading and unloading convenient, simple operation, and save the human resources.
3.roller dimensions and the number of guns can set according to customer requirement.

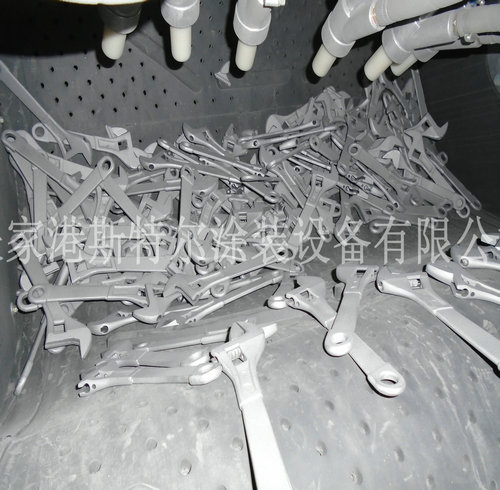

4.It is suitable for small batch production of workpiece, such as zipper head and screws and processing.
◆包括的技術運作 Main technical parameters
機氣參數 Model |
STR-履帶式自動噴砂機 |
主機系統造型尺寸規格 Air end shape dimensions |
L1140×W1000×H1860mm |
滾簡尺寸 Roller size |
500×600mm |
只要一除理量 Every processing capacity |
30-50kg |
滾筒高壓電機 Roller motor |
50HZ ac 380V 3-11KW |
輥子轉速 Roller speed |
10RPM |
區分器變頻電動機Separator moto |
380V 50HZ 3KW |
大氣源的標準 Air source requirement |
pressure 2-7 kg/cm2 |
耗氣量 Gas consumption |
每噴咀1m3/min(只能根據噴咀的數量而定) |
