涂裝機器系例

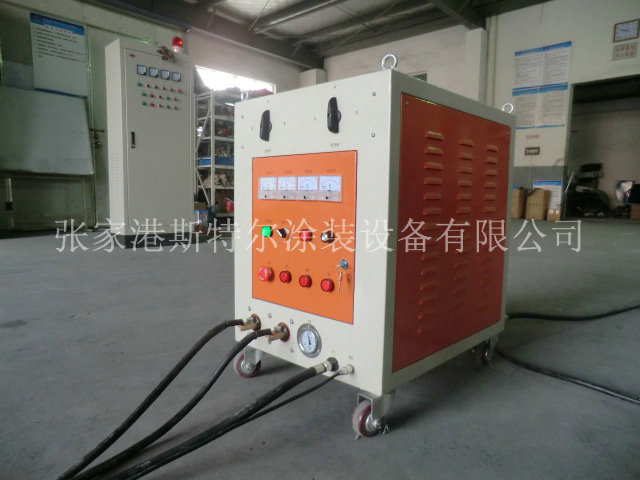

熱噴塑設施設備（噴鋅機，噴鋁機，噴鋅鋁碳素鋼機）系列產品

Thermal spraying equipment (spraying zinc machine, spraying aluminum machine, spraying  injection machine spraying zinc alloy machine) series

·熱噴塑產品系列流程：以每種熱原將噴塑資料（線纜或粉材）進行加熱，熱膨脹的資料建成熔融或半熔融狀態下的顆粒，一些顆粒以縮減的空氣為能源以固定的加速度打擊并行成在基軀干上邊，建成極具固定功能的噴塑層。

·以給出發熱器鍋爐的各種，可氛圍熔化法和發熱器法。后者其中包括熔化燃燒噴砂、非常強大噴砂及公路燃燒噴砂（HVOF）；另外一個也包括弧光靜電噴砂及等鐵亞鐵陰離子靜電噴砂（又分臥式儲罐等鐵亞鐵陰離子靜電噴砂與水穩等鐵亞鐵陰離子靜電噴砂）。靜電噴砂加工制作工藝 對鋁層會產生重要性的影響的是靜電噴砂水溫（嚴厲的說，是溶滴沖擊試驗力基豬體面時的水溫）和溶滴沖擊試驗力接觸面的進程。

·斯特爾熱粉末噴涂料工藝系統其主要用以電力鐵塔、燈桿、紐帶、水閘們、漁業等設備構造件大建筑面積長效機制防潮及造紙助劑烘缸、打印輥、曲軸等工件產品的接觸面磨損情況的粉末噴涂料工藝修復工具，還可用做以電容（電容器）、電瓷的行業的金屬電極粉末噴涂料工藝等。

·Thermal spraying series process: Add some heat source and to heat up the spraying materials(Wire or powder materials), heated material form melting or half melt condition of particles, These particles are power by compressed, to certain speed for the impact and deposition in the matrix surface, form a spray coating with some characteristics.

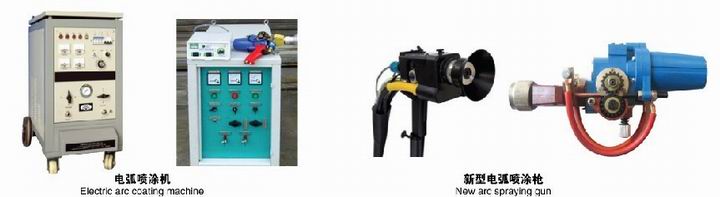

·To the different provide between heat source it can be divided into burning method and heating method. The former includes combustion flame spraying, explosion spraying and the flame spraying (HVOF); The latter include arc spraying and plasma spraying (is divided into atmospheric plasma spraying and plasma spraying water stability). Spraying process have an important impact on the coating is that spraying temperature (Strict said, it is the temperature of dissolve drops the matrix surface of the impact) and dissolve the speed of the impact drops surface.

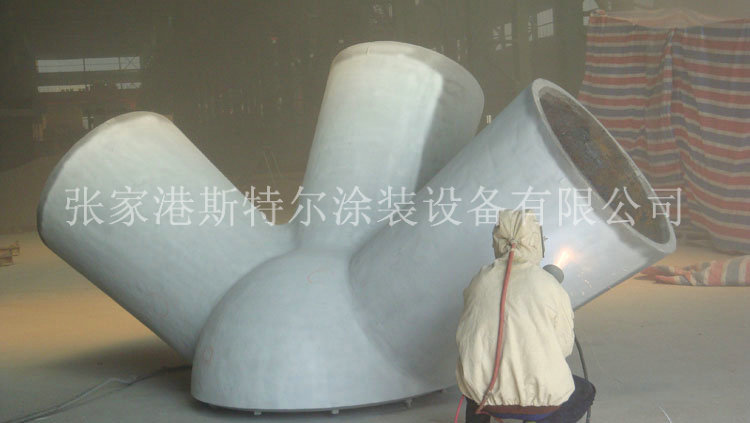

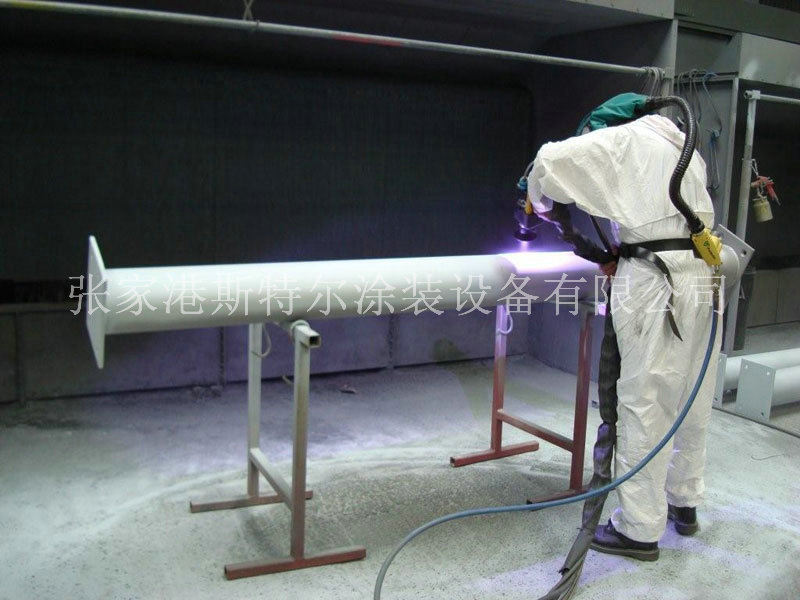

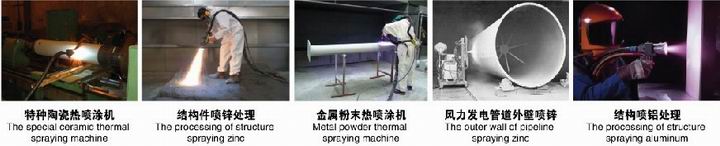

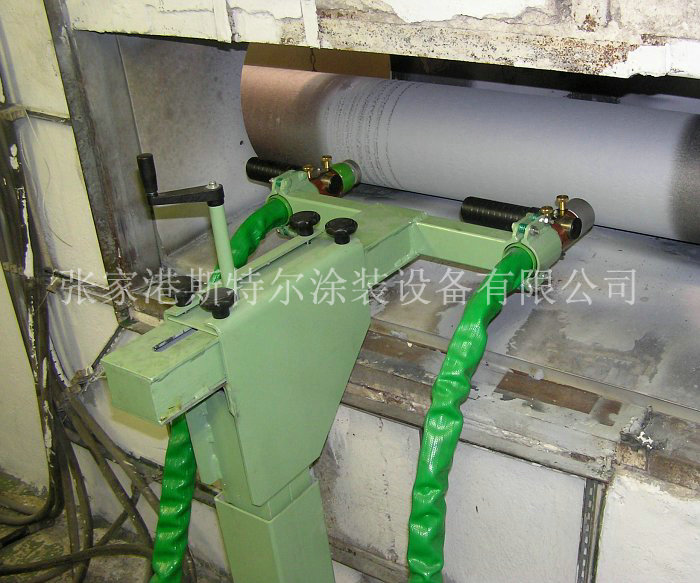

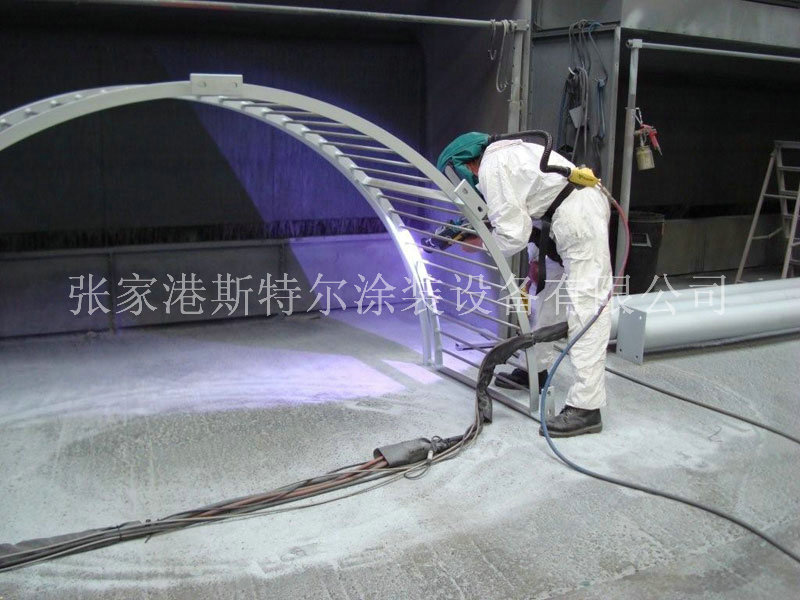

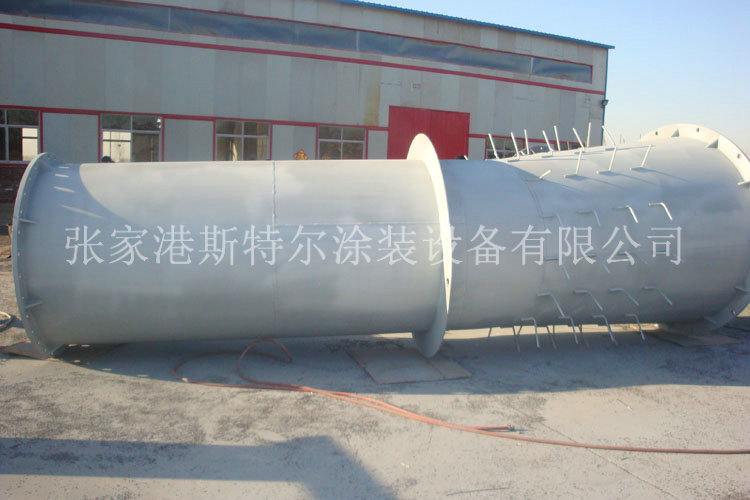

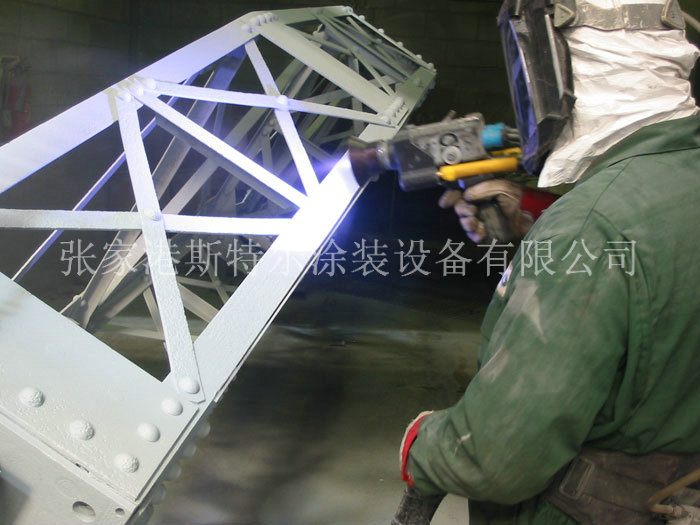

·Stel hot spraying System, which is used for light pole, Bridges, tower, the locks, shipbuilding and other structural long-term anti-corrosion and paper dryer, printing roll, crankshaft etc of workpiece surface wear spraying repair, also applies to capacitor, electroceramics electrode coating industry.

◆鋁層功能鍵 Coating function

合理性俄羅斯F.N.LONGO對熱噴涂工藝鋁層的分類別最簡單的方法，鋁層按效果可包含：

1、抗磨花損金屬表層。也包括抗黏住磨花、外層疲憊值磨花金屬表層和耐沖濁金屬表層。這其中個別事情另外還有抗恒溫（<538C）磨花和抗高溫（538～843C）變形涂覆之分。

2、耐低溫抗被氧化物反應納米表層。這種納米表層在其中包括高溫環境具體步驟（在其中有被氧化反應氛圍、結垢性混合氣體、優于843℃的沖蝕及熱障）和熔融金屬件時候（其中的有熔融鋅、熔融鋁、熔融鐵和鋼、熔融銅）所應該用的涂膜。

3、抗典雅和浸漬防結垢不銹鋼性涂膜。典雅防結垢不銹鋼性其中還有藥劑學工業團隊氛圍、鹽性團隊氛圍、田野團隊氛圍等致使的防結垢不銹鋼性；浸漬防結垢不銹鋼性其中還有飲水談水、非飲水談水、熱談水、蒸餾水、藥劑學和食品類工藝等致使的防結垢不銹鋼性。

4、電導和熱敏阻值耐磨涂膜。這種耐磨涂膜中用電導、熱敏阻值和攔截。

5、恢復正常尺寸大小金屬材質涂覆。這金屬材質涂覆使用鐵基（可銑削與可銑削的鋁合金鋼和耐蝕鋼）和稀有金屬材質金屬材質（鎳、鈷、銅、鋁、鈦及這些人的鋁合金）產品。

6、機器零部件間距操縱耐磨鋁層。這種耐磨鋁層可磨。

7、耐生物學反應腐化涂覆。生物學反應腐化比如不同的各樣酸、堿、鹽，不同的各樣硅酸物和不同的各樣有機電化學生物學反應物料的腐化。

Coating can be divided in function according to the US F.N.LONGO of method that the classified method of thermal spraying coating.

1. Wear resistance coating. Including resistance to stick with wear, wear coating surface fatigue and resistance to blunt turbidity coating. Some of them have difference such as fight microtherm wear(<538C) and high temperature resisting wear coating(538~843C).

2. Heat resistant antioxidant coating. This coating process application of coatings including high temperature( There are oxidation atmosphere, corrosive gas, higher than 843℃ of erosion and thermal barrier) and molten metal process(There are melting molten aluminum, zinc, iron and steel, melting molten copper).

3. Atmospheric corrosion resistance and dipping coating. Atmospheric corrosion caused by corrosion including industrial atmosphere, atmosphere, atmosphere of salt field, etc; Dipping corrosion caused by corrosion including drinking water, the drinking water, hot water, salt water, chemical and food processing, etc.

4. Conductivity and resistance coating.The coating used for electrical conduction, resistance and shielding.

5. Restore size coating. The coating used for some products made by iron (Carbon steel and corrosion resistant steel that can but cutting and grinding) and non-ferrous metal (Nickel, cobalt, copper, aluminum, titanium and other alloy).

6. Mechanical components clearance control coating.The coating can be ground.
